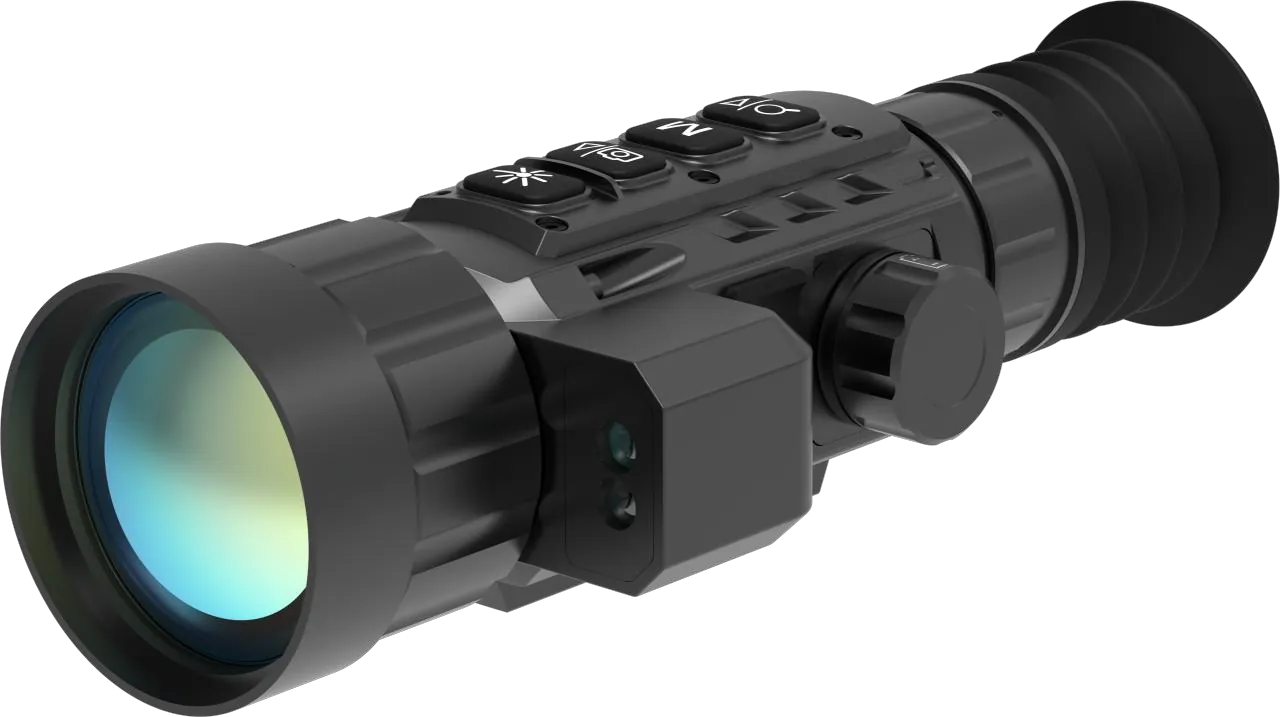

Image 1 of 1: Obsidian Series Long-Tube Thermal Sight

Obsidian Series

Long-Tube Thermal Sight

A long-tube thermal sight family covering 25 / 35 / 50 mm focal lengths.

Product overview

Obsidian Series offers 256 × 192, 384 × 288, and 640 × 512 detector options, covering 1200 to 2600 m detection and 1200 / 2200 m laser-ranging configurations.

Detection up to 2600 m

Laser ranging up to 2200 m

IP67 and 1000G shock resistance

At least 6 hours of runtime

Industry applications

Product features

Multiple detector and focal-length options
Laser ranging
Wi-Fi and app connectivity
Hotspot tracking and burn protection

Applications

Long-range aiming
Night target search
Range determination

Feature guide

Product positioning

Obsidian Series offers 256 × 192, 384 × 288, and 640 × 512 detector options, covering 1200 to 2600 m detection and 1200 / 2200 m laser-ranging configurations.

Specifications

Detector resolution256 × 192 / 384 × 288 / 640 × 512

Focal length25 / 35 / 50 mm

Display resolution1920 × 1080

Detection range1200 / 1800 / 2600 m

Laser ranging1200 / 2200 m

Runtime≥ 6 h

Protection ratingIP67

Shock resistance1000G

Compare products in this family

Only matching public specifications are shown. Missing values are not inferred.

Specification	Obsidian SeriesCurrent product	LY-RF630	LY-TT SERIES
Protection	IP67	IP67	Not published

Turn equipment into part of mission capability

Share field conditions, target distance, and mission stage so the right configuration and information scope can be confirmed.

Start a conversation
